NCS-GCSQ

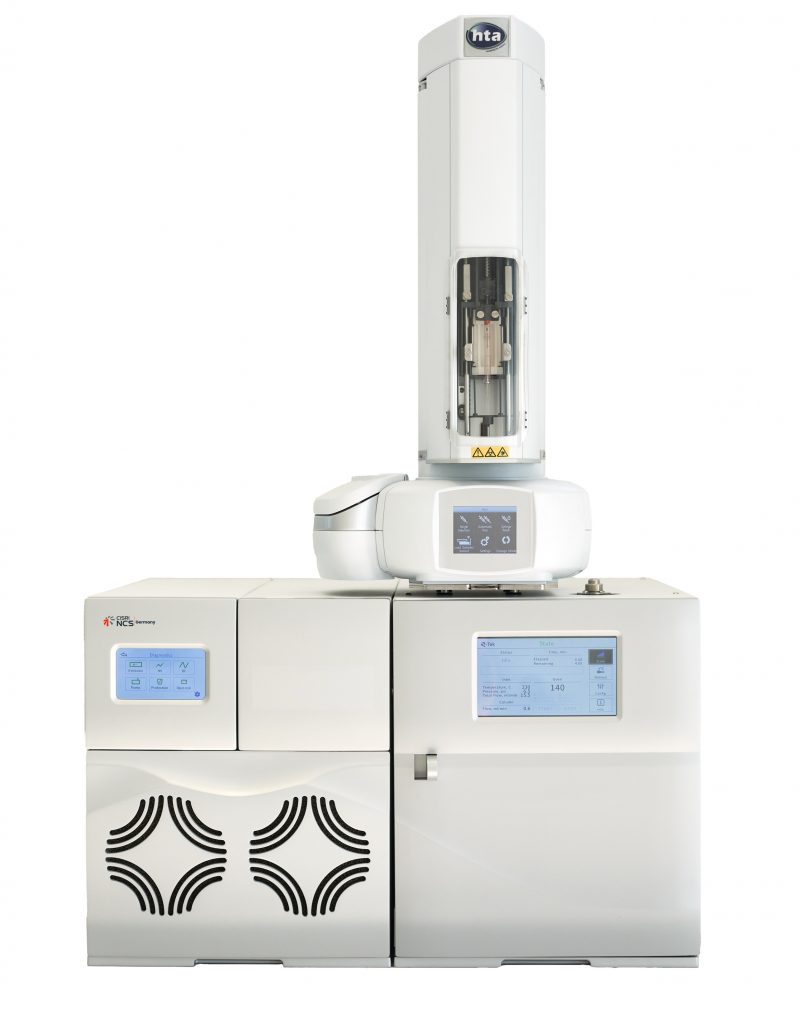

The NCS-GCSQ is a gas chromatograph with a mass spectrometer as a detector. This compact analyzer consists of a GC with a Single Quad Mass Spectrometer, for the analysis of complex samples for routine and research laboratories. Due to its compact size, it is ideal for small laboratories with less bench space.

  • Low detection limit
  • High linear dynamic range
  • Easy access and maintenance for Ion-source and electron multiplier
  • Intuitive software design
Get in touch

The NCS-GCSQ is a gas chromatograph with a mass spectrometer as a detector. This compact analyzer consists of a GC with a Single Quad Mass Spectrometer for the analysis of complex samples for routine and research laboratories. Due to its compact size, it is ideal for small laboratories with less bench space.

A detection limit below 10fg with a precision of less than 5% in detector response this analyzer is made for trace detection of analytes even in complex matrices. Due to its linear dynamic range of 7 orders preconcentration and dilutions are avoided.

  • Low detection limits <10fg
  • High linear dynamic range up to 7 orders.
  • Inert isothermal ion iource designed for high matrix samples such as biological samples and plant extracts
  • Extended life of electron multiplier, optional no-aging photomultiplier
  • Ergonomic design for easy access to ion source and electron multiplier.
  • “One window user interface” Software with method set-up wizard
  • Unique productivity tools “SIM-Wizard” for optimal SIM acquisition parameters set-up, algorithm “iDwell®Time”
  • Novel post-run processing algorithm “FlexSIM” for accurate quantitation of trace targets in challenging matrices
  • Cutting-edge data mining tool “massFinder” for quickly locating specific targets within a TIC chromatogram
  •
  • Inert Isothermal Ceramic Ion Source.
  • Ion source temperature 150–350 °C.
  • Mass range up to 1200 amu (for confident determination of flame-retardant chemicals, PBDE).
  • Scan speed up to 20,000 u/sec
  • Mass axis stability is better than 0.10 u/48 hours.
  • Off-Axis Detector with high energy dynode and long-life electron multiplier operating under low voltage.
  • Optional: no-aging photomultiplier with extended dynamic range.
  • Dynamic range (EM) >5*10e6.
  • One touch high sensitivity tune.
  • Spectral libraries (optional) NIST, Wiley/NIST, Maurer/Pfleger/Weber, Rosner.
  • Proprietary Software modules: Operator – for data acquisition and Analytic Desktop – for data analysis.
  • Proprietary integrated deconvolution algorithm for identification and quantitation of low-level targets in complex matrix.
  • Ion source on removable front cover for cleaning and filament replacement, detector on removable rear cover for easy Maintenance.
  • Supports various Inlets such as Split/Splitless (S/SL) and PVT
  • S/SL Inlet max operated temperature 400℃
  • S/SL Inlet max operated pressure 150psi, 1030 KPa (EPC controlled)
  • Inlet operating modes: Constant pressure; constant flow; ramped pressure; ramped flow
  • Oven operating temperature range: Ambient temperature+5℃ to 400℃
  • Programable oven with 42 steps
  • Max temperature ramp rate 150℃/min.
  • Real-time graphical display of temperature and pneumatic programs.
  • Online help menu and user manual with touch screen.
  • Various autosamplers can be used for sample introduction
